Model number

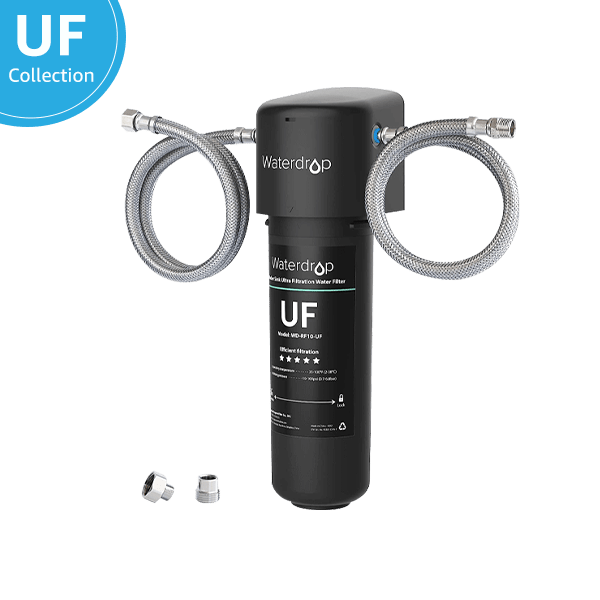

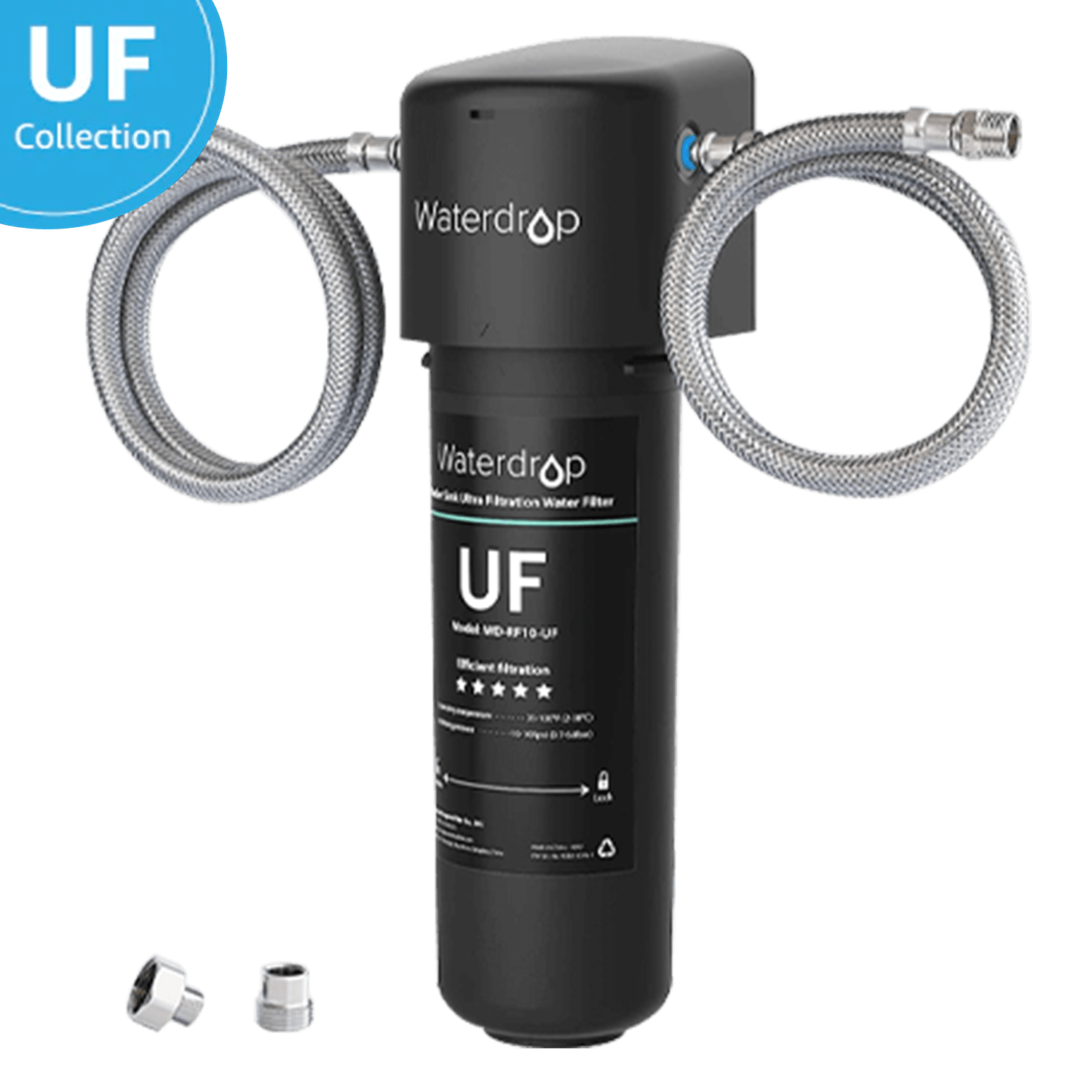

WD-10UA-UF

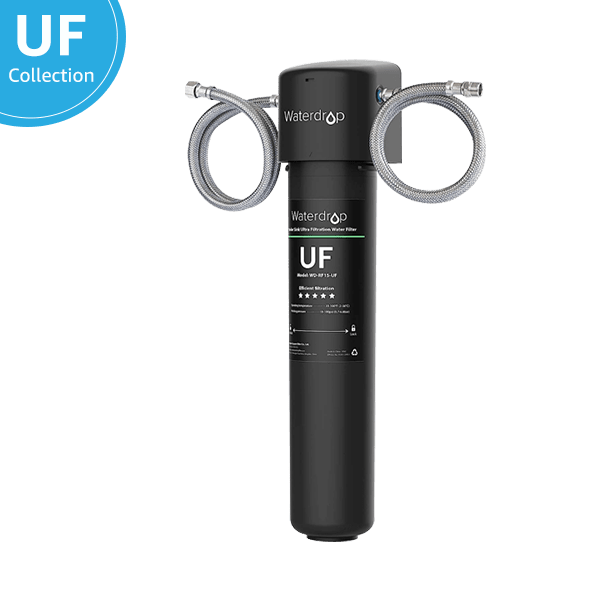

WD-15UA-UF

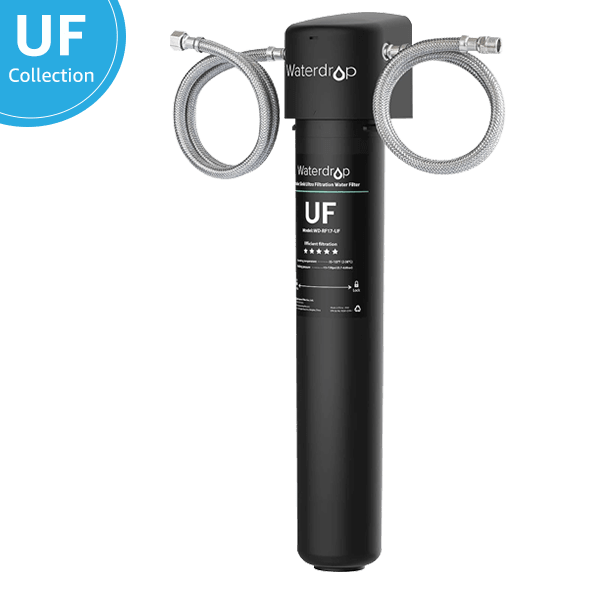

WD-17UA-UF
Compatibility
Suitable for faucets with 1/2" or 3/8" FEMALE NPT thread. If a female threaded connector is needed to connect to your faucet, please contact us BEFORE purchase.

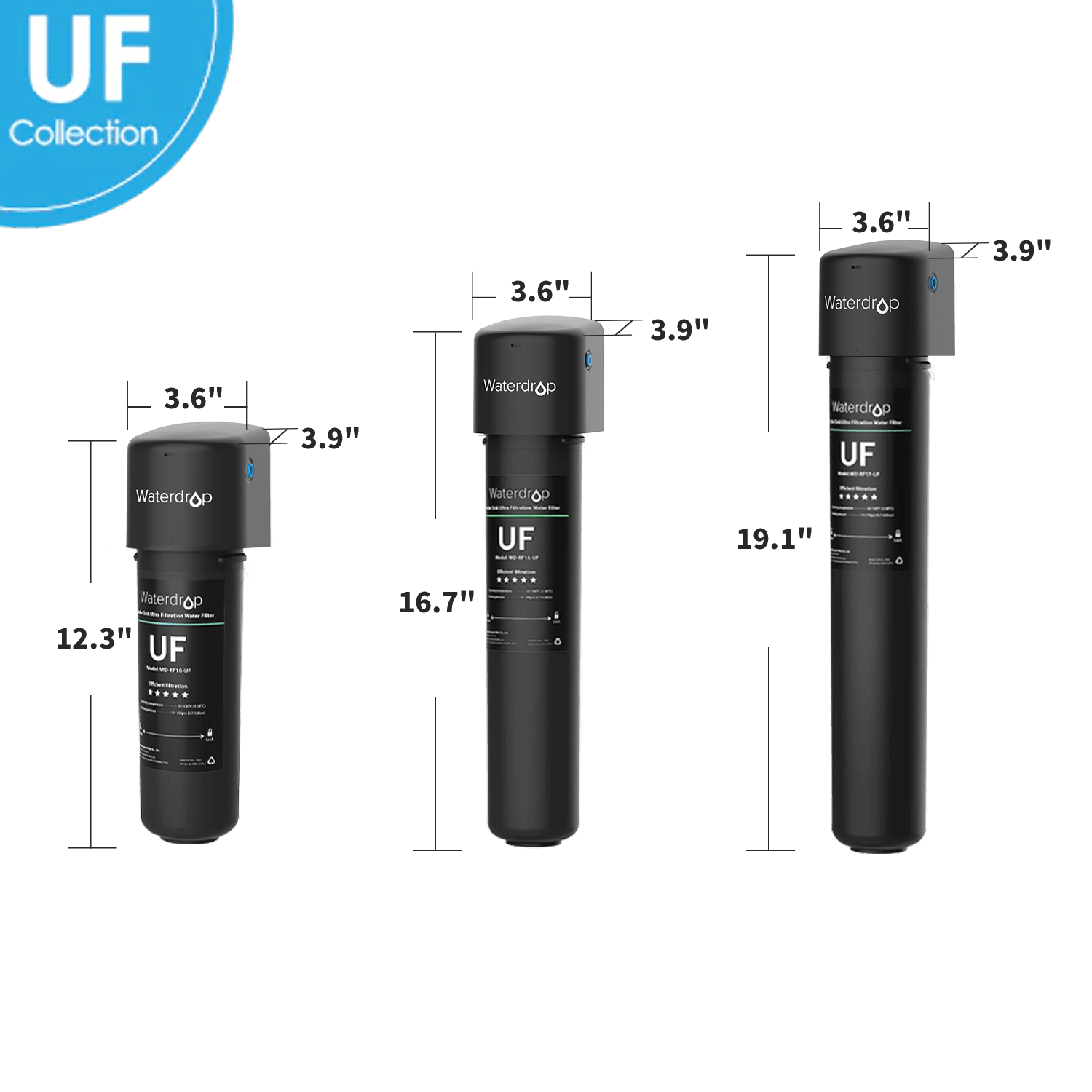

Product dimensions
WD-10UA-UF: 3.6" * 3.85" * 12.3"
WD-15UA-UF: 3.6" * 3.85" * 16.7"
WD-17UA-UF: 3.6" * 3.85" * 19.1"
Operating temperature
2-38℃/35-100℉
Materials
System cover: BPA-free plastic
Faucet: metal
Filter: Polyester membrane Ultrafiltration (UF) membrane Activated carbon block KDF
Item weight
WD-10UA-UF: 3.30 lb
WD-15UA-UF: 3.63 lb
WD-17UA-UF: 4.20 lb
Color
Black
Included components
Waterdrop Undersink Water Filtration System ×1
Inlet hose ×1
Outlet hose ×1
3/8"- 1/2" Convertor set ×1
Self-tapping screws ×1
Teflon tape ×1 and Drilling sticker ×1
Waterdrop Undersink Water Filtration System is designed
to improve the quality of your tap water. The purifier has advanced filtration technology that
delivers tasty purified water from the first sip to the last drop. With a filtration accuracy of
0.01 μm, this under sink filter system reduces the contaminants such as chlorine, taste and
odor, sediment, rust, and other heavy metals. You don’t have to worry about the safety of the
filtered water. This under-sink water purification system comes with three connection plans to
meet your various water needs, with plan A to connect to your own faucet, plan B to connect to a
dedicated faucet, and plan C to connect to your refrigerator/icemaker. The purifier filters out
contaminants while retaining beneficial elements. It is ideal for cooking, washing fruits and
vegetables, and washing dishes. The stable flow rate ensures that you can use clean water
immediately. The under counter water filter reduces contaminants that lead to dry skin and
nervous system problems. The filtered water is also ideal for face washing, skincare, and
personal cleansing, as it maintains skin vitality. The under sink water purifier works without
electricity and doesn’t produce wastewater. Also, it is ideal for RV use. With efficient
filtration performance, the system delivers tasty, purified water to meet your various outdoor
water needs. The specially added KDF ensures filter hygiene even during the non-camping season.
The compact design saves a lot of under-sink space and creates more room for storage. Say
farewell to bulky bottled water.
Waterdrop Undersink Water Filtration System is a
compact undersink water filtration system designed to improve the quality of your tap water. The
system has advanced filtration technology that delivers tasty purified water from the first sip
to the last drop. With a filtration accuracy of 0.5 μm, Waterdrop Undersink Water Filtration
System reduces the contaminants such as chlorine, taste and odor, sediment, rust, and other
heavy metals. You don’t have to worry about the safety of the filtered water. Waterdrop
Undersink Water Filtration System comes with three connection plans to meet your various water
needs, with plan A to connect to your own faucet, plan B to connect to a dedicated faucet, and
plan C to connect to your refrigerator/icemaker. The system filters out contaminants while
retaining beneficial elements. It’s ideal for cooking, washing fruits and vegetables, and
washing dishes. The stable water flow rate ensures that you can use clean water immediately. The
system reduces contaminants in tap water that lead to dry skin and nervous system problems. The
filtered water is also ideal for face washing, skincare, and personal cleansing, as it maintains
skin vitality. The system works without electricity and doesn’t produce wastewater. Also, the
system is ideal for RV use. With efficient filtration performance, the system delivers tasty,
purified water to meet your various outdoor water needs. The specially added KDF ensures filter
hygiene even during the non-camping season. The compact design saves a lot of under-sink space
and creates more room for storage. Say farewell to bulky bottled water.
UA-UF Ultra-Filtration System |
UB-UF Ultra-Filtration System |
UC-UF Ultra-Filtration System |
TSU Ultrafiltration System |
TSC Filtration System |
|
Situation | Undersink/RV/Bathroom | Undersink/RV/Bathroom | Refrigerator/Icemaker/RV | Undersink | Undersink |
---|---|---|---|---|---|
Micron Rating | 0.01μm | 0.01μm | 0.01μm | 0.01μm | 0.5 μm |
Upgrade Filter Material | Adding 0.01 micron ultrafiltration membrane | Adding 0.01 micron ultrafiltration membrane | Adding 0.01 micron ultrafiltration membrane | Adding 0.01 micron ultrafiltration membrane | × |
Removable Substances | Contaminants larger than 0.01 μm, Chlorine, Taste and Odor, Sediment, Rust, Heavy Metals | Contaminants larger than 0.01 μm, Chlorine, Taste and Odor, Sediment, Rust, Heavy Metals | Contaminants larger than 0.01 μm, Chlorine, Taste and Odor, Sediment, Rust, Heavy Metals | Most of contaminants larger than 0.01 micron | Most of chlorine, lead, mercury, fluoride, arsenic, taste and odor |
Filtration Capacity | 8000/16000/24000 Gallons | 8000/16000/24000 Gallons | 8000/16000/24000 Gallons | 6/12/24 Months | 6/12/24 Months |
Gallons Per Minute | 0.75 GPM | 0.75 GPM | 0.75 GPM | 0.6 GPM | 0.6 GPM |
Reduce TDS | No | No | No | No | No |
Retain Beneficial minerals | √ | √ | √ | √ | √ |
Dedicated Faucet | × | v | × | √ | √ |
Can I use this system with well water?
If your home already has a whole-house filter, then the system can work
perfectly with well water.
Can this system reduce TDS?
TDS stands for total dissolved solids and is basically composed of
inorganic salts and a small amount of organic matter. The system can reduce harmful substances while
keeping beneficial trace elements, though it is not designed for significant TDS removal. Please choose
Waterdrop RO system if you’d like to reduce TDS.
Can this system inhibit bacteria?
This system adopts advanced KDF, which effectively inhibits the growth of
bacteria. With a pore size of 0.01 um, the system can effectively reduce contaminants, ensuring clean,
safe, and healthy purified water.
What is the filter service life?
WD-RF10-UF:12 months/8,000 gallons
WD-RF15-UF: 24 months/16,000 gallons
WD-RF17-UF: 36 months/24,000 gallons
Where can I buy a replacement filter?
Click here to purchase
replacement filters.
Can this system replace my refrigerator filter?
With WD-UC, the system can connect to your refrigerator/icemaker and
replace your overpriced refrigerator filter. With a filtration accuracy of 0.01 μm, this inline water
filter achieves excellent filtration performance, extended filter life, and lower replacement costs.
Waterdrop has developed fridge connection kits with all the tools you need to connect WD-UA or WD-UB to
your refrigerator and ice maker.
What is the water pressure?
Waterdrop Undersink Water Filtration System is built to handle a great
deal of pressure and is designed to be installed on cold water lines only. In general, the water
pressure in homes should be around 60psi. The recommended water pressure is between 10-125 psi.
